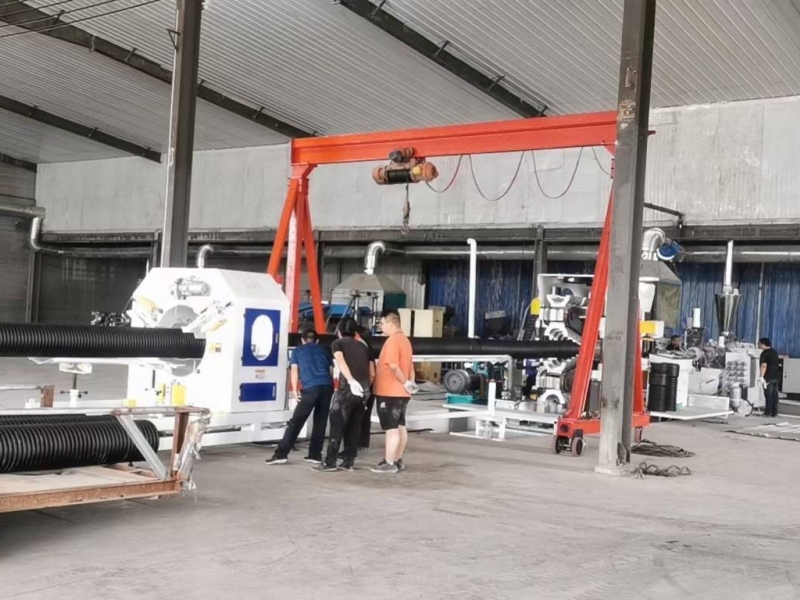

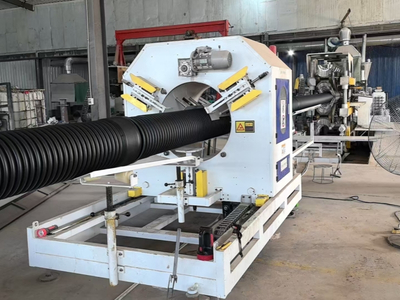

HDPE Double-wall Corrugated Pipe Prpduction Line

Product Specifications:

Uses：Drainage pipes

YINA Focuses On High-end Pipe Equipment R&D and Production

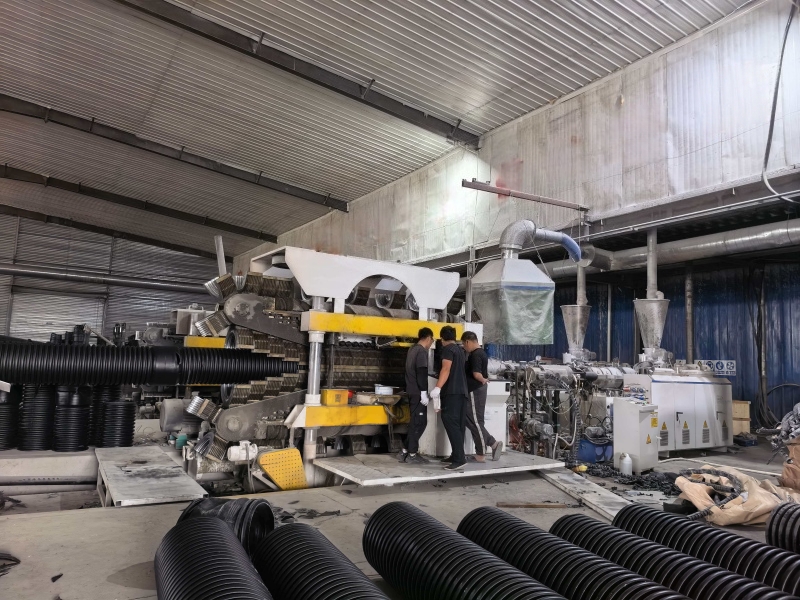

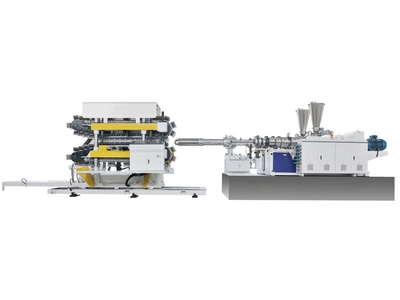

This HDPE double wall corrugated pipe production line is high-configured, high-capacity and high-stable, realizing full coverage of large diameters, high-speed & efficient production, and intelligent precise control.It can quickly produce high-quality drainage pipes and is an ideal choice for large-scale production.

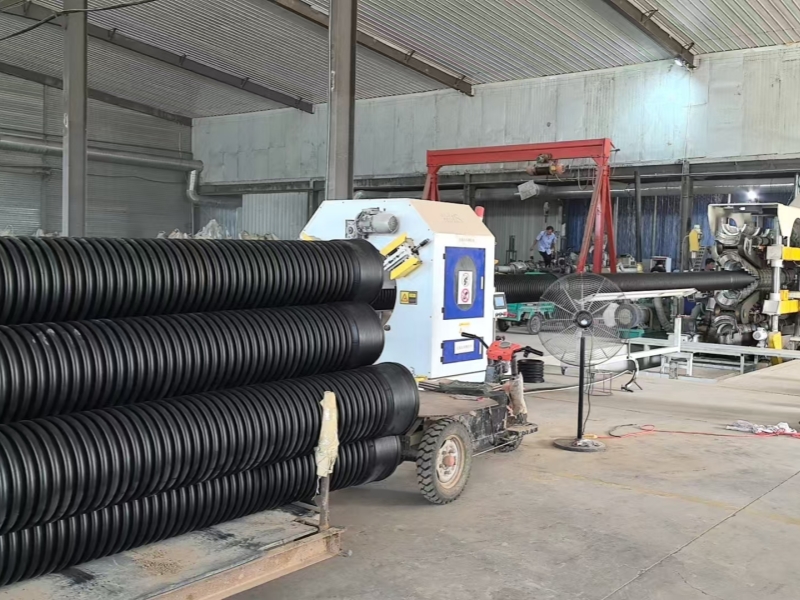

Capacity And Efficiency Advantages

· High extrusion capacity: The main extruder has a capacity of 260–350 kg/h, suitable for mass production.

Product Quality Advantages

· Stable internal and external color: A dedicated extruder for the glossy layer ensures stable and uniform color.

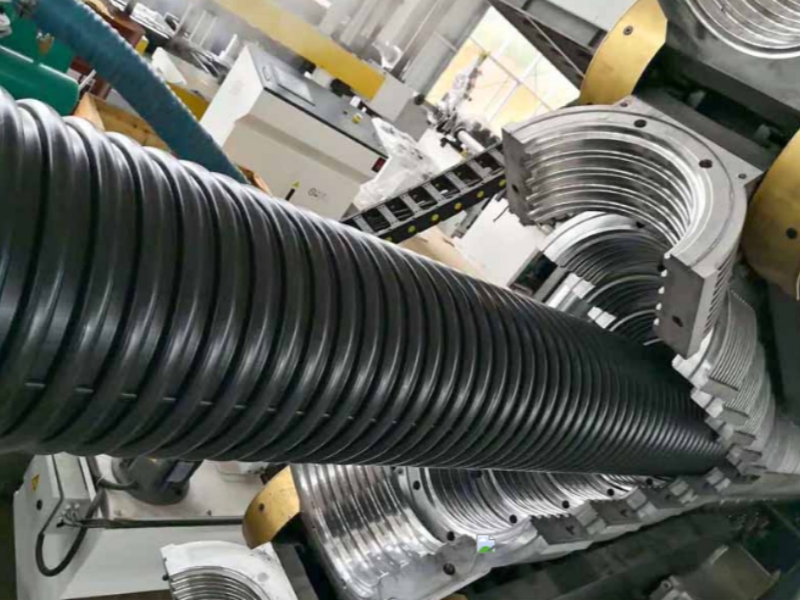

· High molding precision: A double-helix split mold + four-stage vacuum forming results in regular waveforms and stable dimensions.
· Superior modules: The molding modules are made of high-quality copper-containing aluminum alloy with mirror-finished inner holes, resulting in smooth inner walls for the pipes.
· Strong raw material compatibility: Specifically designed for virgin PE materials, resulting in superior product strength and weather resistance.

Equipment Configuration Advantages

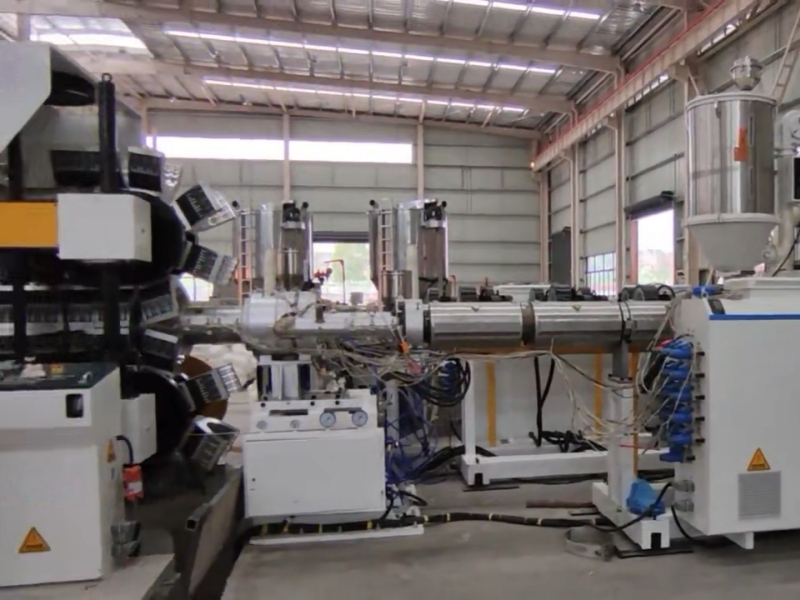

· Twin-cone twin-extrusion + composite co-extrusion: Simultaneous extrusion of inner and outer walls + glossy layer results in a more stable structure.
· Durable core components: Screw/barrel undergoes 38CrMoAlA nitriding treatment, ensuring high hardness and long service life.
· Reliable electrical brands: Schneider circuit breakers, Huichuan/Hyfelco frequency converters, and ETD controllers ensure low failure rates.
· Precise cooling and temperature control: Multi-zone heating + fan/circulating water cooling minimizes temperature fluctuations.

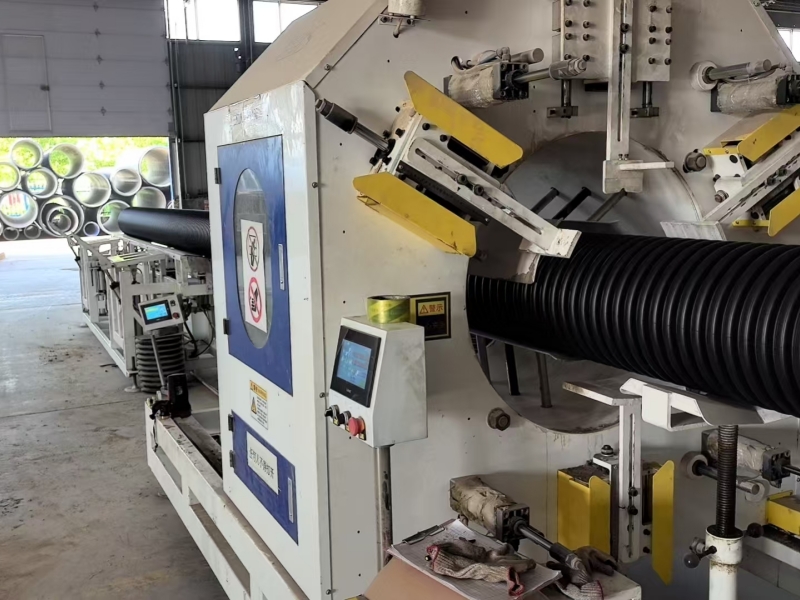

Advantages Of Automation And Intelligence

· PLC + touch screen centralized control: real-time monitoring of speed, temperature and pressure, simple operation.
· Intelligent protection: Automatic alarm and shutdown in case of main motor overload or over-torque to protect the equipment.
· Automatic weighing: The stacking rack is equipped with electronic weighing, which automatically records the weight of a single tube, facilitating data management.

Advantages Of Use And Maintenance

· Easy mold change: Circumferential thread adjustment allows for quick disassembly and assembly, and efficient specification changes.
· Imported components: Imported components such as linear bearings and flaring systems ensure enhanced stability.
· Standard spare parts package: Includes tools, oil seals, thermocouples, solenoid valves, etc., for quick troubleshooting of minor malfunctions.
· Strong environmental adaptability: Stable operation is possible in temperatures ranging from 0–40℃ and humidity levels up to 85% without condensation.

Why choose our double-wall corrugated pipe production line?

We are a large-scale self-owned manufacturing factory based in China. With 15 years of expertise in the R&D and production of various HDPE pipes and production equipment, we have built solid technical strength and rich practical experience. We have established partnerships with more than 200 clients worldwide, and earned wide recognition in the industry for our mature production experience and reliable product quality.

Our Services

Customized Solutions:
· Specification Customization
· Process Customization
· Supporting Customization

Turnkey Project：
· One-stop shopping
· Installation and Commissioning
· Production Empowerment

Technical Support/Training：

After-sales Guarantee：
· Equipment Quality Assurance
· Wearable Parts Supply
· Product Traceability Service
